Large Capacity Digital Water Bath with Integrated Magnetic Stirrer

Elevate your large-scale lab processes with the LVDALAB DXY-J Series. This digital magnetic stirring water bath combines high-capacity heating (50L-165L) with powerful, uniform mixing and precise temperature control for demanding applications in science and industry.

Large Magnetic Stirring Water Bath: Mastery in Large-Scale Research

The large magnetic stirring water bath (DXY-J Series) by LVDALAB represents the pinnacle of integrated laboratory heating. Specifically, our engineers designed this robust series for demanding industrial-scale applications. Consequently, it provides an exceptionally uniform and constant thermal field for large experimental samples. Furthermore, it serves as an indispensable tool across diverse sectors including petroleum, medicine, and food testing.

Unwavering Precision and Powerful Performance

Precision is the core foundation of our large magnetic stirring water bath. Notably, the advanced PID temperature control system maintains accuracy within ±0.5°C. Therefore, it ensures rapid heating while eliminating localized temperature variations. In addition, the integrated stirring function delivers speeds up to 2450 RPM. This allows for consistent and homogeneous mixing even in high-viscosity solutions containing solids. As a result, researchers obtain reliable and repeatable outcomes in complex chemical synthesis.

Versatile Capacity Options

To meet varied research volumes, this series offers impressive capacities ranging from 50L to 165L. Specifically, each model provides the same level of stability regardless of the liquid volume. Consequently, you can scale up your experiments without compromising on thermal integrity or mixing quality.

Designed for Safety, Durability, and Mobility

Safety remains our top priority with the large magnetic stirring water bath. Notably, every unit features an independent electrical switch for enhanced security. Moreover, built-in protections effectively prevent overheating and dry-boiling risks. Additionally, the intuitive LCD digital display provides clear, real-time monitoring of all parameters. Therefore, users can manage automated experiments up to 9999 minutes with complete peace of mind.

Robust Construction for Industrial Use

We constructed the DXY-J Series with a durable 304 stainless steel inner tank. In addition, the robust iron spray-painted outer shell guarantees a prolonged service life. Specifically, the universal rotating casters ensure effortless 360° mobility within the lab. Consequently, rearranging your workspace requires minimal effort. In conclusion, LVDALAB provides the reliable foundation required for success in your most critical large-scale laboratory work.

Features of Large Capacity Digital Water Bath with Integrated Magnetic Stirrer

  • Large Capacity Adaptability: Available in 50L, 95L, and 165L models, perfectly suited for bulk heating, mixing, and incubation needs in industrial, pharmaceutical, and academic settings.

  • Uniform Water-Mediated Heating: Ensures exceptionally even heat transfer through the water medium, effectively preventing localized overheating or cold spots and guaranteeing consistent sample temperatures.

  • Integrated Magnetic Stirring: Features a powerful magnetic stirring function (up to 2450 rpm) for uniform liquid mixing, eliminating temperature gradients within the bath.

  • Robust & Durable Construction: Equipped with a high-quality 304 stainless steel inner tank for superior corrosion and chemical resistance, extending the equipment’s lifespan. The iron spray-painted outer shell provides added robustness.

  • Precise Digital Temperature Control: PID temperature control ensures accuracy of ±0.5℃, with a wide range from RT+5°C to 100°C. LCD digital display shows real-time temperature and time.

  • Advanced Safety & Convenience: Includes an independent electrical switch for enhanced safety, built-in timer (up to 9999 min) for automated operation, and a convenient integrated drainage valve for easy emptying.

  • Effortless Mobility: Features universal rotating casters for smooth, 360° movement, making instrument relocation simple and quiet in any lab environment.

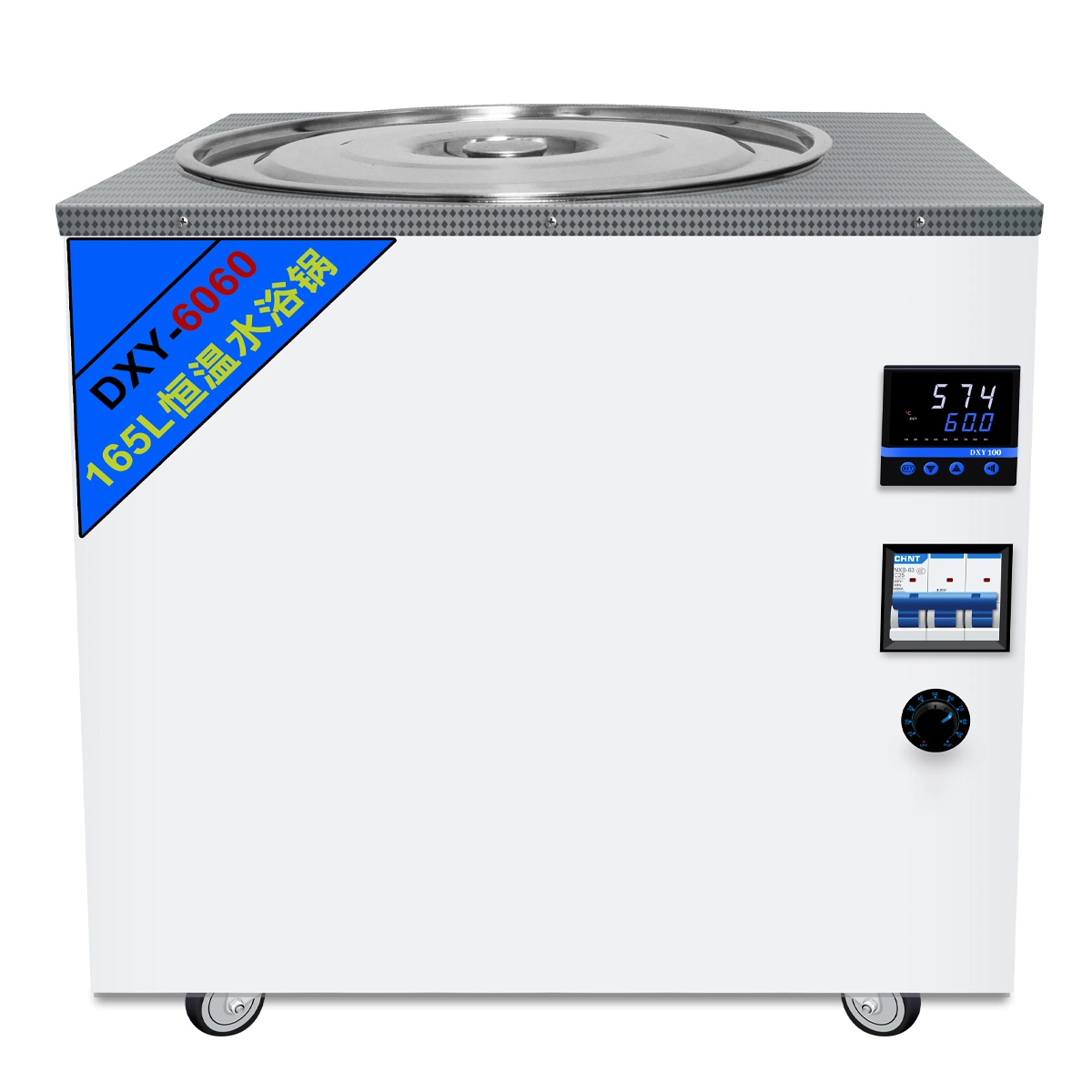

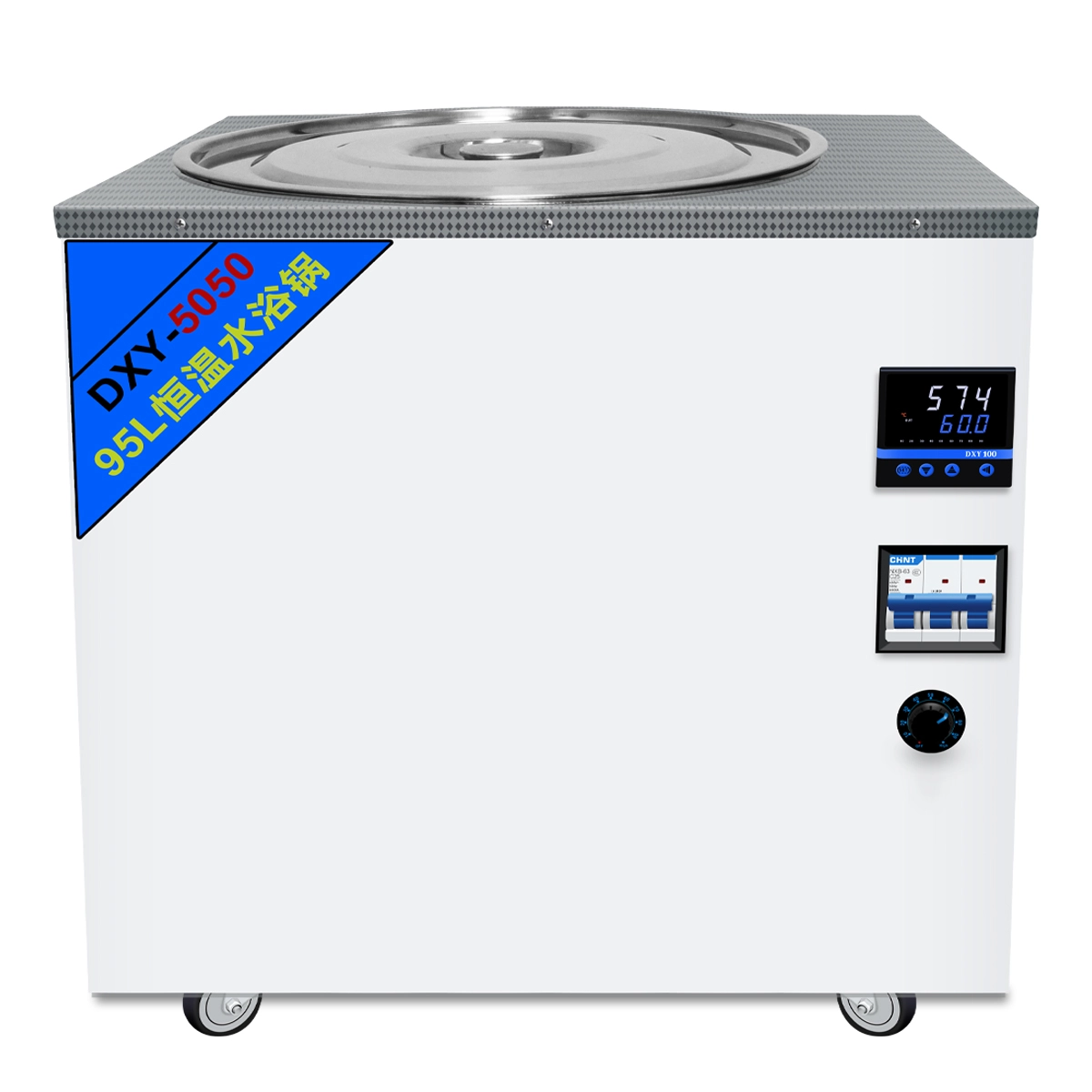

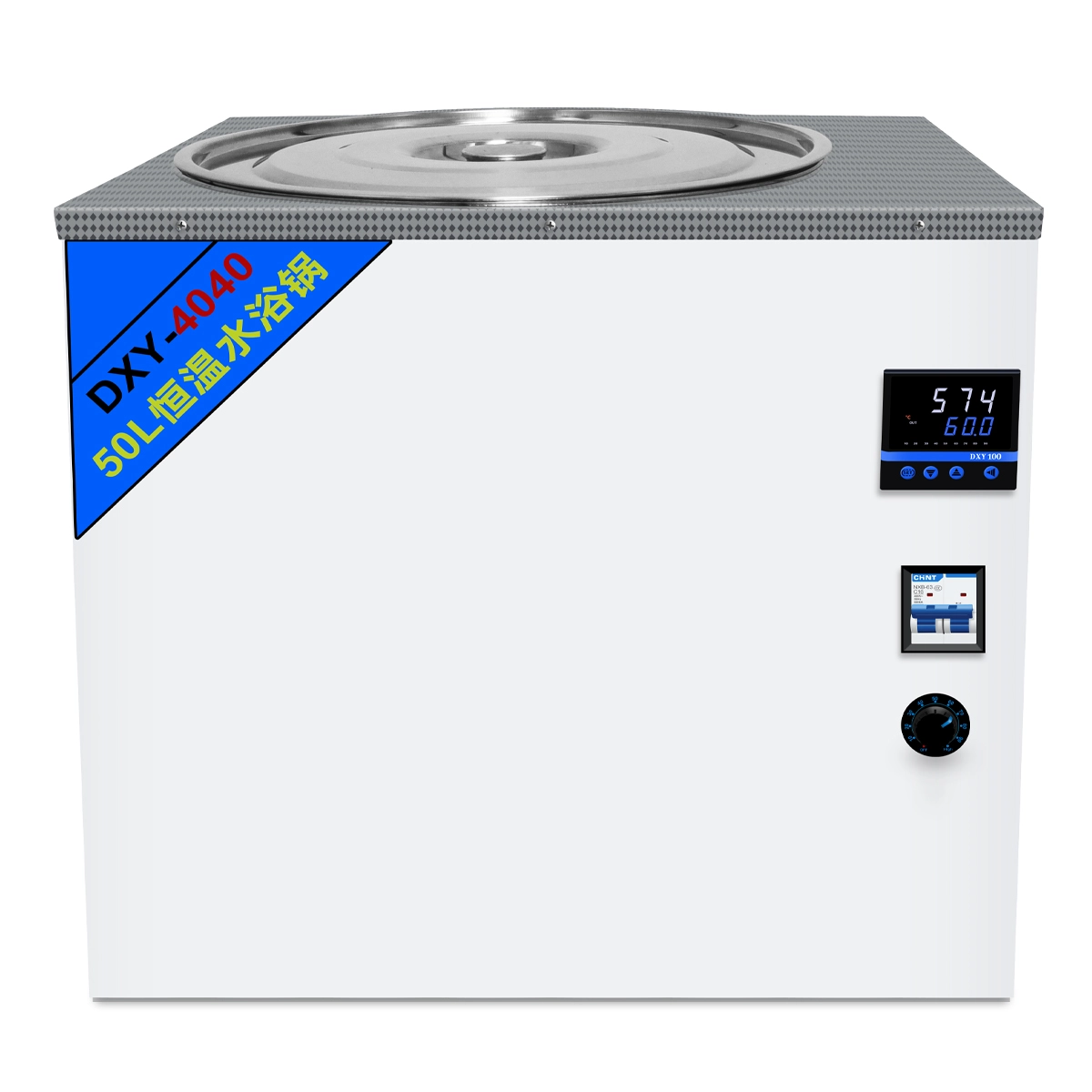

Image DXY-4040J Model DXY-5050J Model DXY-6060J Model
Model DXY-4040J DXY-5050J DXY-6060J
Capacity 50L 95L 165L
Outer Dimensions (L×W×H) mm 540×460×550 640×560×660 740×660×720
Inner Dimensions (H×Dia.) mm 420×400 500×500 580×600
Water Bath Power 3000W 6000W 9000W
Voltage 220V 380V
Heating Tube Dia. 310mm 410mm 510mm
Temp Accuracy ±0.5°C
Temp Range RT+5°C-100°C
Timer Function 9999 min
Stirring Speed Max 2450 rpm
Stirring Function Yes
Drainage Function Yes
Independent Power Switch Yes
