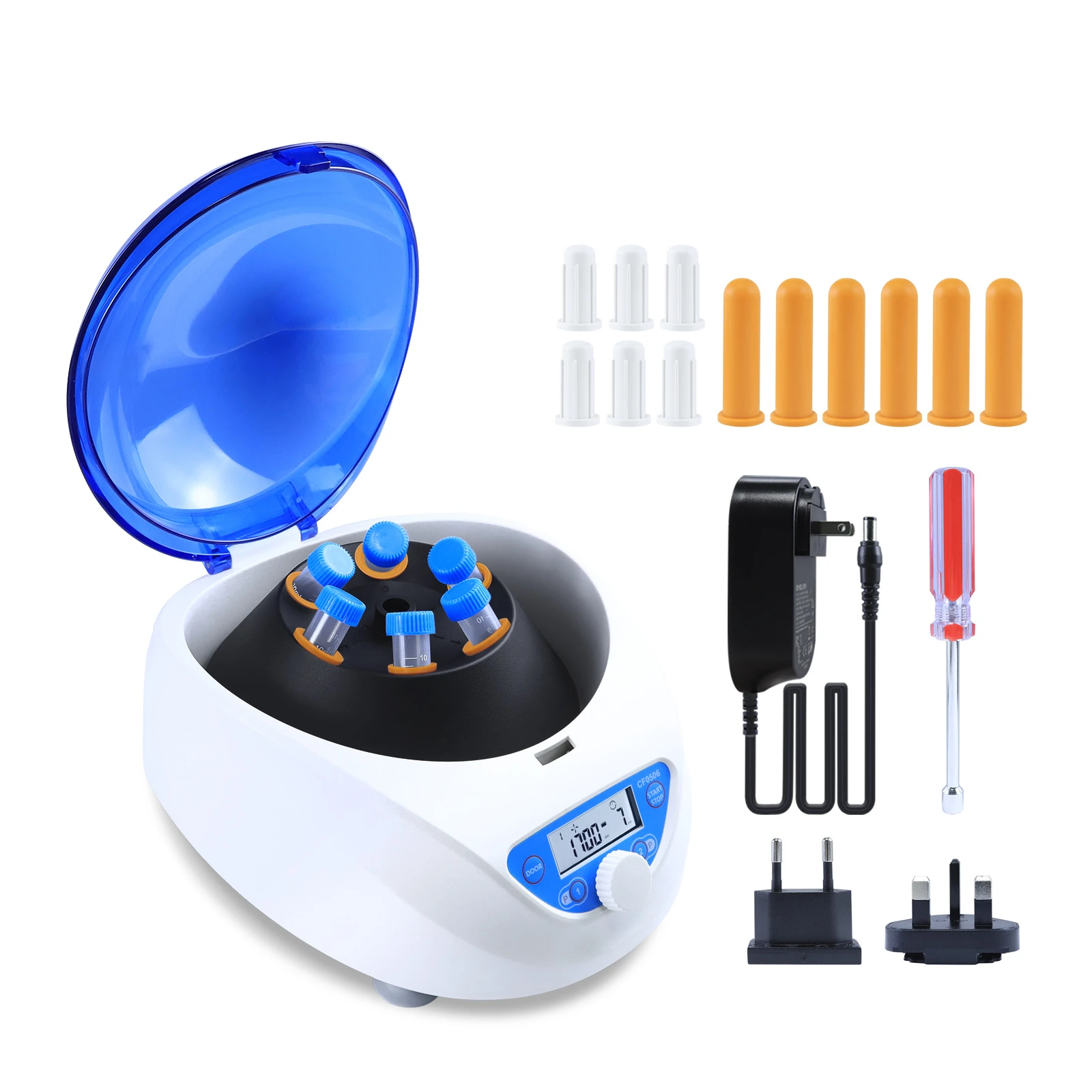

LVDALAB Low-Speed Centrifuge (5000 RPM) – Benchtop Laboratory Centrifuge
Professional Low-Speed Centrifuge (5000 RPM) for medical and clinical research. Features a high-performance brushless DC motor, intelligent door lock, and 2 preloaded programs for plasma, serum, and fecal sample separation.
High-Precision Low-Speed Centrifuge for Clinical Diagnostics
The LVDALAB Low-Speed Centrifuge is a vital instrument for modern medical laboratories. We design this benchtop system to deliver precise separation for serum, plasma, urine, and fecal samples. By utilizing a high-performance brushless DC motor, the unit achieves stable speeds between 300 and 5000 RPM. Specifically, researchers trust this centrifuge for its consistent performance in complex biochemical and medical research tasks.
We integrate advanced safety and convenience features into every unit. The intelligent door-lock system secures the lid automatically during operation. Furthermore, the centrifuge offers two preloaded programs (P1/P2) for customized settings. You can save your frequent parameters and run them instantly, which significantly improves your workflow efficiency. Therefore, this equipment serves as an essential tool for clinical laboratories, blood banks, and medical research institutes. You can learn more about centrifugation separation principles on Wikipedia.
If you require technical documentation or custom rotor adapters for your clinical practice, please contact our support team. We are committed to providing reliable laboratory solutions. Our laboratory preparation tools also help optimize your sample management.
Features of LVDALAB Low-Speed Centrifuge (5000 RPM) – Benchtop Laboratory Centrifuge
Key Features
- Precision Control: Adjustable speed range from 300 to 5000 RPM, with the option to set and display by RPM or G-force.
- Smart Programming: Two preloaded programs (P1/P2) allow for one-key procedure startup, enhancing daily efficiency.
- Customizable Braking: Two deceleration speed settings provide flexibility to protect sensitive samples during stop cycles.

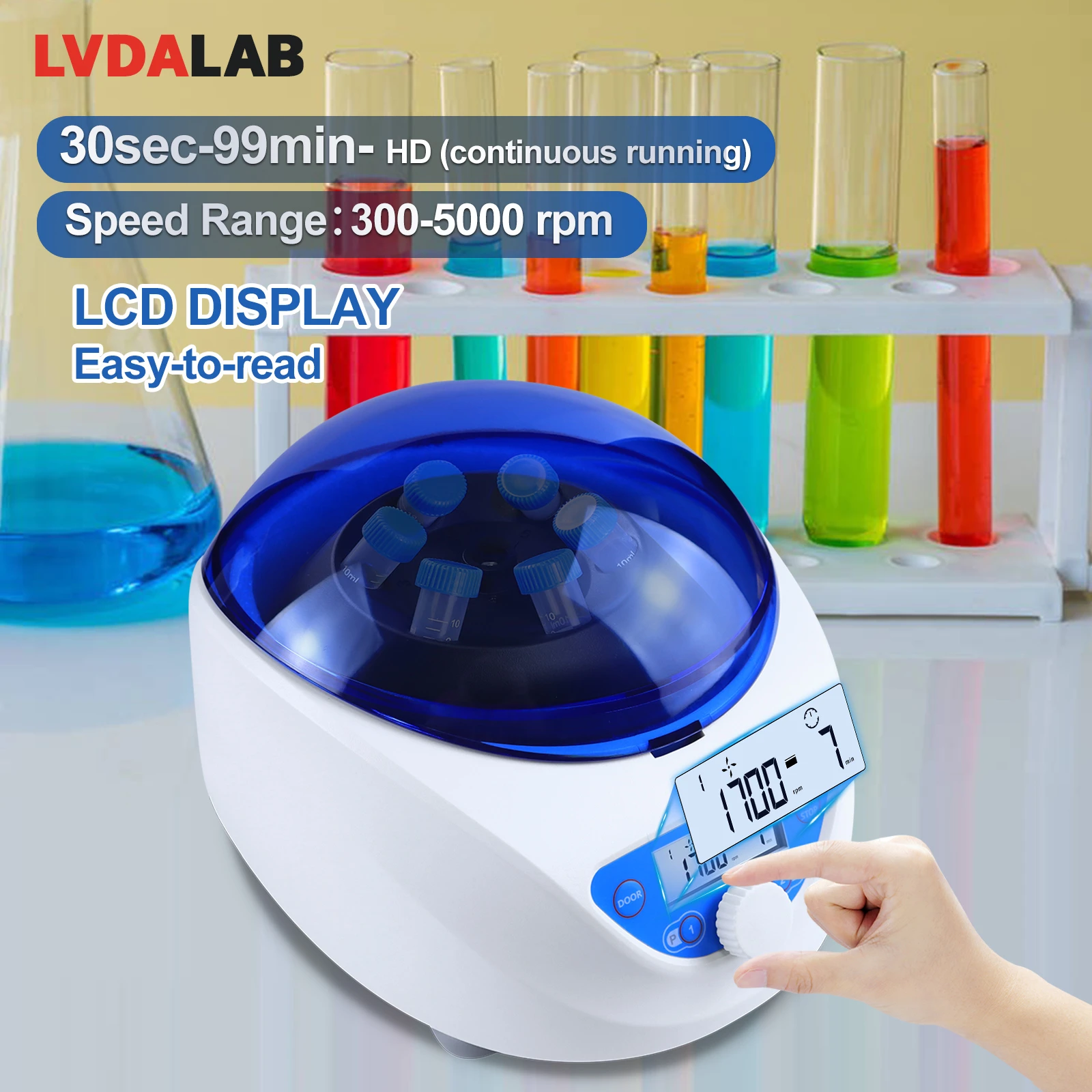

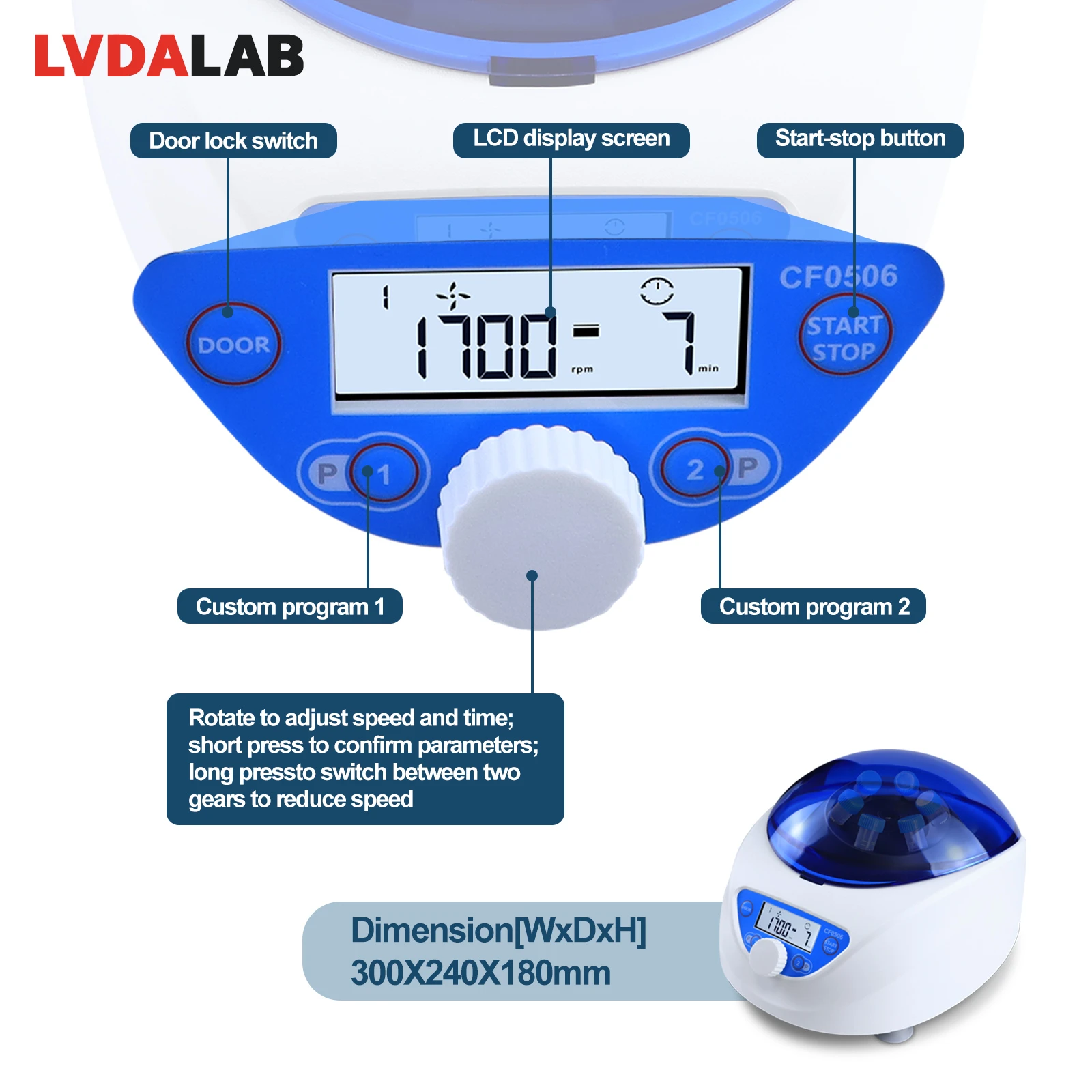

- User-Friendly Interface: Equipped with an easy-to-read LCD display and integrated sound-alert function for status monitoring.
- Maintenance-Free Design: Driven by a high-performance brushless DC motor for quiet, reliable, and long-term laboratory operation.
- Automated Safety: Features automatic lid-lock release after the run, ensuring both sample security and operator convenience.
Technical Specifications
| Feature | Specification |
|---|---|
| Speed Range | 300-5000rpm (increment: 10rpm) |
| Max. RCF | 2600xg (increment: 10g) |

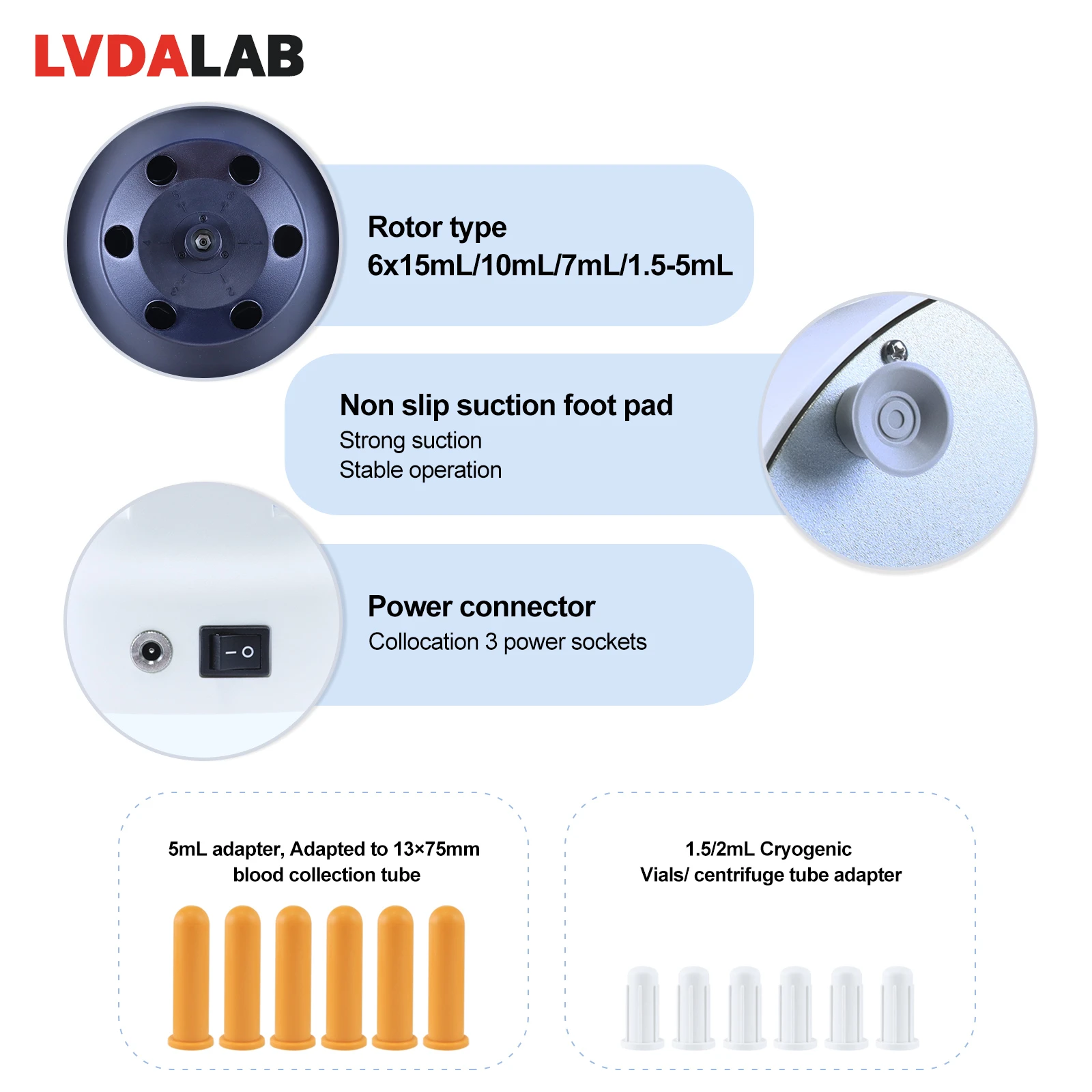

| Rotor Capacity | 6 x 15mL/10mL/7mL/1.5-5mL |
| Run Time | 30sec–99min, HD (continuous) |
| Motor Type | Brushless DC motor |
| Dimensions [WxDxH] | 300 x 240 x 180 mm |
| Weight | 5.2 kg |
| Certifications | CE, cTUVus |
Clinical & Research Applications
The DM0506 is a cornerstone of the modern medical industry. It serves as essential equipment for clinical laboratories, blood banks, medical colleges, and research institutes. This unit is specifically optimized for the separation of serum, plasma, urine, and fecal samples. Its versatility makes it indispensable for biochemical diagnostics, where sample integrity and separation speed are paramount.
Optimized Laboratory Workflow
To achieve a seamless sample preparation workflow, we recommend integrating your centrifuge with the following systems:
- Sample Preparation: Pair with our precision lab sieves for pre-separation of solid particulate matter.
- Liquid Handling: Use alongside our micro-pipette series for ultra-precise volumetric transfers before centrifugation.
- Mixing Requirements: Utilize our magnetic mixing solutions for reagent formulation prior to clinical assays.
